Lord Fin Tube-Corrugated Tube, Swage Tube

Corrugated Tube is a steel pipe that can generate turbulent flow in the fluid that passes jurisdiction by forming a prescribed projection internally in the tube.
It is sometimes used as energy-absorption parts for automobile.

Standard Size
Standard size is designed to minimize pressure loss and to improve heat transfer performance.
In general, the ditch depth is related with thickness and diameter of material tube though the heat transfer performance is related with inside projection of the tube.
In each case, we may have a meeting to inspect customers requirement.

Material
Carbon steel tube
Alloy steel tube
Stainless steel tube

Usage
Heat transfer tube
HVACequipment
Residual heat use around waste incineration plant
fire tube of boiler
Energy-absorption parts for automobile
External diameter corrugated engineering site

pitch

 (P) Ditch depth

 (D) Radius (R) External diameter (D1)deviation tolerance

12.7 5.0 0.5 1.0 max.

Higher limit of material diameter deviation

min.

 (Lower limit of material diameter deviation) - 1.0

15.9 6.0 0.6

19.0 7.0 0.7

21.7 8.0 0.8

25.4 9.0 0.9 2.5

27.2 10.0 1.0

31.8 12.0 1.2

34.0 12.0 1.2

38.1 14.0 1.4

42.7 16.0 1.6

45.0 16.0 1.6

48.6 18.0 1.8

50.8 18.0 1.8

60.3 22.0 2.2 3.5 max.

Higher limit of material diameter deviation

min.

 (Lower limit of material diameter deviation) - 1.5

60.5 22.0 2.2

63.5 23.0 2.3

76.2 28.0 2.8

76.3 28.0 2.8 4.5 max.

Higher limit of material diameter deviation

min.

 (Lower limit of material diameter deviation) - 2.0

82.6 30.0 3.0

88.9 32.0 3.2

89.1 32.0 3.2

101.6 37.0 3.7

114.3 41.0 4.1

139.8 50.0 5.0

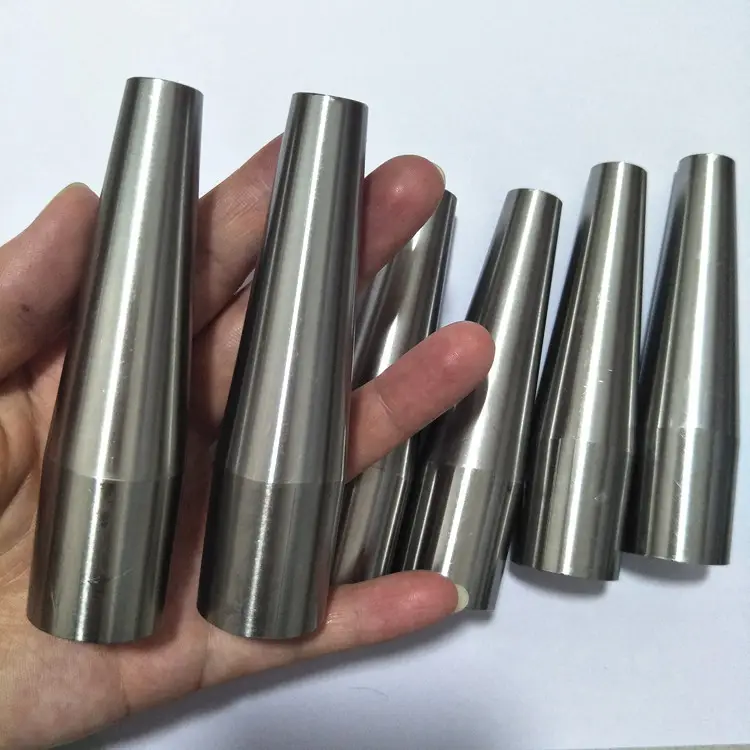

Swage Tube improve thermal efficiency in boiler, and facilitate the installation.
